Multiple conductors with insulated sheaths are wrapped into a single jacketed cable in multicore cable. Multicore Felixble cable job is to avoid a tangled connection by using a single cable rather than 10 or more individual wires, by connecting them one at a time. A 3-phase cable cannot be called a multi-core cable, but a cable with two or more than two separate 3-phase conductors is a multicore cable.
The conductors are made of electrolytic grade copper that has been annealed and bunched together as per class 5 of IS 8130 : 2013. Multicore Felixble copper Cable are manufactured as per IS 694 : 2010 standards and are available from 0.25 Sq. mm to 400 Sq. mm
Types of Multicore Flexible Cables:

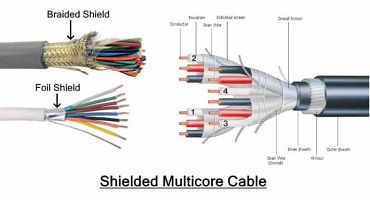

- Shielded Multicore Cable – Available with Braided Shield Cable and Foil Shield Cable

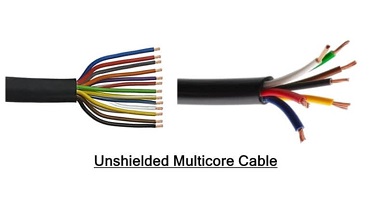

- Unshielded Multicore Cable
Applications of Multicore Felixble Cable:
- Computer Networking & Data centres
- Transmitting audio signal
- Camera control unit in studios to send Audio and Video signals
| PVC insulated Bare copper conductor 600v / 1000v sheated Multicore Felixble cables | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Nominal Area (Sq. mm.) | Insulation Thickness (mm) | Core Diameter (mm) | Max. DC Resistance Ohm/Km at 20°c | Sheat Thickness (mm) | Approx Overall Diameter (mm) | Current Rating (Amps) | ||||||
| 2 Core | 3 Core | 4 Core | 2 Core | 3 Core | 4 Core | 2 Core | 3 Core | 4 Core | ||||
| 0.5 | 0.6 | 2.2 | 39 | 0.9 | 0.9 | 0.9 | 6.08 | 6.41 | 6.96 | 4 | 3 | 3 |
| 0.75 | 0.6 | 2.4 | 26 | 0.9 | 0.9 | 0.9 | 6.44 | 6.8 | 7.39 | 7 | 6 | 6 |
| 1 | 0.6 | 2.6 | 19.5 | 0.9 | 0.9 | 0.9 | 6.78 | 7.17 | 7.8 | 12 | 10 | 10 |
| 1.5 | 0.6 | 2.8 | 13.3 | 0.9 | 0.9 | 1 | 7.22 | 7.65 | 8.34 | 16 | 14 | 14 |
| 2.5 | 0.7 | 3.5 | 7.98 | 1 | 1 | 1 | 8.64 | 9.16 | 10.01 | 20 | 18 | 18 |
| 4 | 0.8 | 4.3 | 4.95 | 1 | 1 | 1 | 10.08 | 10.94 | 11.98 | 27 | 24 | 24 |
| PVC insulated Plain copper conductor 600v / 1000v sheated Multicore Felixble cables | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Nominal Area (Sq. mm.) | Insulation Thickness (mm) | Core Diameter (mm) | Max. DC Resistance Ohm/Km at 20°c | Sheat Thickness (mm) | Approx Overall Diameter (mm) | Current Rating (Amps) | ||||||
| 2 Core | 3 Core | 4 Core | 2 Core | 3 Core | 4 Core | 2 Core | 3 Core | 4 Core | ||||
| 6 | 0.8 | 4.8 | 3.3 | 1.1 | 1.2 | 1.2 | 11.36 | 12.28 | 13.46 | 34 | 30 | 30 |
| 10 | 1 | 6.3 | 1.91 | 1.3 | 1.4 | 1.4 | 14.5 | 15.66 | 17.28 | 44 | 39 | 39 |
| 16 | 1 | 7.3 | 1.21 | 1.4 | 1.4 | 1.4 | 16.94 | 18.06 | 19.88 | 61 | 55 | 55 |
| 25 | 1.2 | 9.1 | 0.78 | 1.4 | 1.5 | 1.6 | 20.48 | 22.1 | 24.58 | 69 | 60 | 60 |
| 35 | 1.2 | 10.1 | 0.554 | 1.6 | 1.6 | 1.7 | 22.7 | 24.85 | 26.98 | 88 | 77 | 77 |
| 50 | 1.4 | 11.9 | 0.386 | 2 | 2 | 2 | 27.04 | 28.89 | 31.86 | 116 | 102 | 102 |
| 70 | 1.4 | 13.9 | 0.272 | 2.2 | 2.2 | 2.2 | 31.48 | 33.65 | 37.15 | 155 | 140 | 140 |
| 95 | 1.6 | 16.3 | 0.206 | 2.4 | 2.4 | 2.4 | 35.94 | 38.43 | 42.45 | 190 | 165 | 165 |
