K.M Cables and Conductors offers wide range of electrical conduit pipes meeting electrification demands power projects, commercial establishments, households and industrial buildings. These are pipes are used to protect and route electric wires and cables from moisture and considered has a best insulator against electricity.

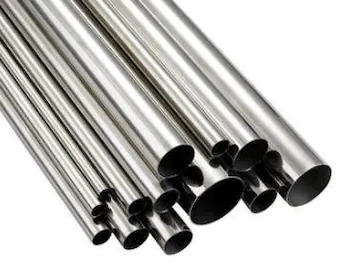

| MS Coduit Pipe | ||||
|---|---|---|---|---|
| NOMINAL SIZE OF CONDUITS (In mm) | OUTSIDE DIAMETER (In mm) | TOLERANCE OF OUTSIDE DIAMETER (In mm) | WALL THICKNESS OF CONDUIT PIPES (In mm) | |
| 20 | 20 | -0.3 | 1.4 to 1.8 | |
| 25 | 25 | -0.4 | 1.4 to 1.8 | |
| 32 | 32 | -0.4 | 1.4 to 1.8 | |
| 40 | 40 | -0.4 | 1.6 to 2.2 | |
| 50 | 50 | -0.5 | 1.6 to 2.2 | |

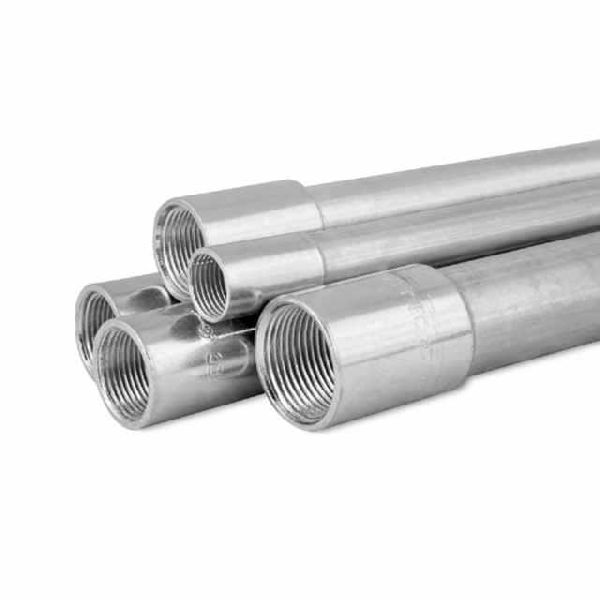

| GI Conduit Pipe | ||||
|---|---|---|---|---|
| NOMINAL SIZE OF CONDUITS (In mm) | OUTSIDE DIAMETER (In mm) | TOLERANCE OF OUTSIDE DIAMETER (In mm) | DIAMETER (In mm) WALL THICKNESS OF CONDUIT PIPES (In mm) | |
| 20 | 20 | -0.3 | 1.4 to 1.8 | |
| 25 | 25 | -0.4 | 1.4 to 1.8 | |
| 32 | 32 | -0.4 | 1.4 to 1.8 | |
| 40 | 40 | -0.4 | 1.6 to 2.2 | |
| 50 | 50 | -0.5 | 1.6 to 2.2 | |

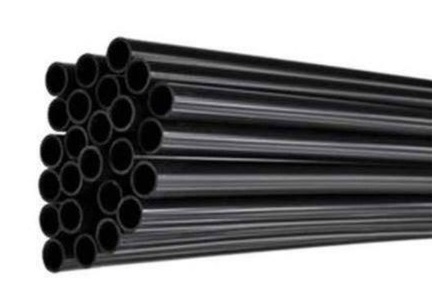

| PVC Conduit pipe | |||||
|---|---|---|---|---|---|
| NOMINAL SIZE OF CONDUITS (In mm) | OUTSIDE DIAMETER (In mm) | TOLERANCE OF OUTSIDE DIAMETER (In mm) | Minimum Inside DIameter (In mm) | ||
| Light | Medium | Heavy | |||
| 20 | 20 | -0.3 | 17.4 | 16.9 | 15.8 |
| 25 | 25 | -0.4 | 22.1 | 21.4 | 20.6 |
| 32 | 32 | -0.4 | 28.6 | 27.8 | 26.6 |
| 40 | 40 | -0.4 | 35.8 | 35.4 | 34.4 |
| 50 | 50 | -0.5 | 45.1 | 44.3 | 43.2 |
