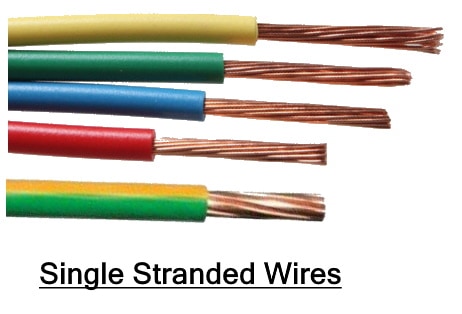

A Single conductor wire is usually shielded with plastic or rubber insulation. They are usually formed by drawing through hole of insulated materials like plastic, polymers, rubber, etc. These wires come in sold conductor, stranded or braided form. Wires can be manufactured in square or flat other than their circular form based on the purpose.
Single solid wire consists of one piece of metal wire where as Stranded electrical wire are made of small wires bundled together to form larger conductor.
Types of Single Core Cables:
- PVC Insulated Single Stranded wire
- PVC Insulated Multi Stranded wire
Type of Insulation:
- FR upto 90 degrees
- FRLS upto 105 degrees
- HFFR upto 120 degrees
Application of Single Core Cables:
- It is the most popular choice residential or commercial building wiring purpose. Contact K M Cables certified Single core cable manufacturer in India for more information, sizes & price.
| Single core PVC insulated bare copper conductor unsheathed 1.1 KV cable wire | ||||
|---|---|---|---|---|
| Nominal Area (Sq. mm.) | Insulation Thickness (mm) | Outer Diameter (Approx) | Current Rating (Amps) | Max. DC Resistance Ohm/Km at 20°c |
| 0.5 | 0.6 | 2.1 | 4 | 39 |
| 0.75 | 0.6 | 2.27 | 7 | 26 |
| 1 | 0.6 | 2.44 | 12 | 19.5 |
| 1.5 | 0.6 | 2.66 | 16 | 13.3 |
| 2.5 | 0.7 | 3.27 | 22 | 7.98 |
| 4 | 0.8 | 3.99 | 29 | 4.95 |
| 6 | 0.8 | 4.52 | 37 | 3.3 |
| 10 | 1 | 5.9 | 51 | 1.91 |
| 16 | 1 | 7 | 68 | 1.21 |
| 25 | 1.2 | 8.77 | 86 | 0.78 |
| 35 | 1.2 | 9.67 | 110 | 0.554 |
| 50 | 1.4 | 11.44 | 145 | 0.386 |
| 70 | 1.4 | 13.44 | 215 | 0.272 |
| 95 | 1.6 | 15.46 | 260 | 0.206 |
| 120 | 1.6 | 17.16 | 305 | 0.161 |
| 150 | 1.8 | 19.08 | 355 | 0.129 |
| 185 | 2 | 21.2 | 415 | 0.106 |
| 240 | 2.2 | 24.12 | 500 | 0.0801 |
| 300 | 2.4 | 27.04 | 585 | 0.0641 |
| 400 | 2.6 | 30.5 | 695 | 0.0486 |
| 500 | 2.8 | 34.96 | 790 | 0.0384 |
| 630 | 2.8 | 37.98 | 905 | 0.0287 |
| 800 | 3.2 | 43.72 | 1050 | 0.0224 |
| 1000 | 3.2 | 47.72 | 1185 | 0.0178 |
